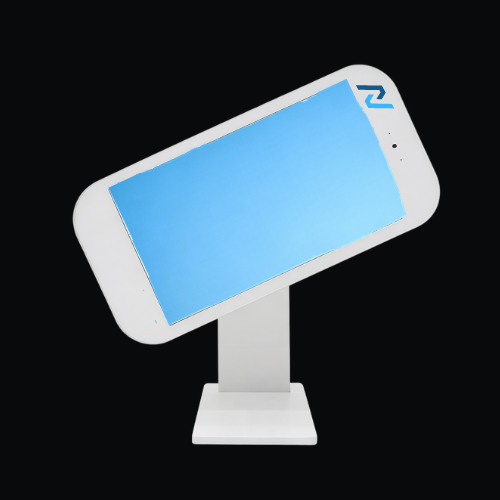

HoloBox Mini
A 22-inch portable holographic display that brings the same magic to retail counters, small venues, and on-the-go activations.
Display
22" Full HD
Weight
8.4 kg
Setup
<15 min
Designed for the moments that matter.
HoloBox Mini is the portable counterpart to the Pro — a 22-inch holographic display compact enough to fit in a carry case and powerful enough to be the centerpiece of a retail counter, a pop-up activation, or an executive briefing room.
It was designed for the moments where the experience matters more than the scale. A point-of-sale display that lets a customer see a product configured in real time. A pharmaceutical conference where a clinical asset needs to be explained in three dimensions to one specialist at a time. A boutique launch where the run is two weeks and the install crew is one person.
Underneath the smaller chassis sits the same optical engineering as the Pro: glasses-free parallax, 180-degree viewing, the same content pipeline, the same cloud CMS, the same firmware. Anything that runs on a Pro runs on a Mini. Which means you can prototype an experience on a Mini, prove it commercially, and scale it onto a Pro without touching the creative.
The Mini was built around one design constraint: that one person, in under fifteen minutes, can take it out of a case and have a holographic experience running. Everything else followed from that. The result is the most flexible holographic display we make.
Six things it does exceptionally well.
Truly portable
8.4 kg, fits a single carry-on case, ships as standard checked baggage. One person can install, operate, and strike it inside an hour.
Plug-and-play setup
Single power cable, single network or USB-C tether, automatic content sync. From case-open to first frame in under 15 minutes.
Same optical stack as Pro
Identical glasses-free parallax engine and color profile. Whatever you create for a Mini scales perfectly to the Pro and back.
5G-ready connectivity
Built-in support for an optional 5G modem makes pop-up and outdoor activations work without venue networking dependencies.
Multi-site sync
Run identical or geo-targeted content across hundreds of Mini units worldwide from a single cloud dashboard.
Low total cost of ownership
90W average draw, no special install hardware, and a price point designed for scaled retail rollouts of 50–500 units.
Every number, on the table.
Display
8 specs- Screen size
- 22 inches diagonal
- Native resolution
- 1920 × 1080 (Full HD)
- Brightness
- 1,500 nits typical, 1,800 nits peak
- Contrast ratio
- 3,000:1 native
- Refresh rate
- 120 Hz
- Viewing angle
- 180° horizontal, 130° vertical
- Color gamut
- 95% DCI-P3, 100% sRGB
- Color depth
- 10-bit
Inputs & connectivity
5 specs- Video inputs
- HDMI 2.0, USB-C DP-Alt (also powers from PD)
- Network
- Gigabit Ethernet, Wi-Fi 6E, optional 5G modem
- Audio
- Built-in 2 × 5W stereo, 3.5mm out, Bluetooth 5.3
- Sensors
- Ambient light, presence
- Control
- REST API, MQTT, Nexa CMS
Content formats
4 specs- Video
- H.264, H.265 (HEVC) up to 1080p60
- 3D
- glTF 2.0, USDZ, FBX, OBJ
- Image
- JPEG, PNG, WebP, AVIF
- Live
- RTMP, SRT ingest
Physical
5 specs- Dimensions (W × H × D)
- 520 × 360 × 180 mm
- Weight
- 8.4 kg / 18.5 lbs
- Mounting
- Counter-top, VESA 100, optional roller stand
- Finish
- Matte black, brushed silver
- Carry case
- Custom Pelican-style, included
Power & environment
5 specs- Power input
- 100–240V AC or USB-C PD 100W
- Power draw
- 90W average, 140W peak
- Operating temperature
- 0 °C to 40 °C / 32 °F to 104 °F
- Humidity
- 10–80% non-condensing
- Acoustics
- <22 dBA at 1 m (fanless mode available)
Compliance
4 specs- Safety
- UL 62368-1, IEC 62368-1, CB Scheme
- EMC
- FCC Part 15 Class B, CE EN 55032
- Environment
- RoHS 3, REACH, WEEE registered
- Warranty
- 12 months standard, extendable to 36 months
What you unpack.
Everything required to get from delivery to first frame, in one shipment.
- HoloBox Mini 22" display unit
- Custom carry case (cabin-luggage compliant)
- 100W USB-C power adapter and AC cable (region-specific)
- 1.5 m HDMI 2.0 cable
- 1.5 m USB-C cable
- VESA 100 mounting plate
- Microfiber cleaning kit and quick-start guide
- Cloud CMS account credentials (sent by email)
Where it earns its keep.
Retail counters
In-store product configuration and storytelling at point of sale.
A premium watchmaker deployed Minis to 84 boutiques worldwide, letting customers see any reference rotated and configured in 3D. Conversion on configurator-led sales rose meaningfully across the network.
Outcome
+22% conversion at counter
Pop-ups & activations
Two-week launches where install crew is one person.
A streetwear label ran a 14-city pop-up tour using two Minis per location. One field marketer installed each site in under an hour and operated remotely from the brand's HQ.
Outcome
1 operator, 14 cities, zero downtime
Conferences
Booth and breakout-room visualizations for technical content.
A pharma company brought Minis to an oncology congress to walk specialists through a molecular mechanism in 3D. Average detail-aid conversation length doubled vs. printed alternatives.
Outcome
2× average rep conversation length
Executive briefings
Boardroom-scale visualizations for sales and partner meetings.
A satellite operator uses Minis in its customer briefing centers to show orbital constellations interactively. Sales-cycle stage-progression accelerated within two quarters of rollout.
Outcome
Faster stage progression in sales cycles
Illustrative outcomes — not actual client engagements.
Three steps from asset to audience.
Capture or upload
Bring your own MP4, glTF, or USDZ files, or commission a volumetric capture at our LA or London studio. Our cloud CMS auto-converts most assets within minutes.
Schedule and target
Use the Nexa CMS to schedule playlists by site, daypart, or audience trigger. Assets sync to every connected unit over standard internet — no on-site server required.
Measure and iterate
Built-in dwell-time and engagement analytics report back nightly. A/B test creative directly from the dashboard and route winning variants automatically.
What to expect.
- 01
Site survey
Remote or on-site assessment of lighting, sightlines, power, and network. You receive a written report and a tailored install plan within five business days.
- 02
Delivery
White-glove freight to your dock or directly to the install site. Custom crating for international shipments. Average door-to-door time of 9 days domestic, 18 days international.
- 03
Installation
Certified Nexa technicians complete physical installation, network setup, and content provisioning. Most installs finish in a single working day.
- 04
Training
Two 90-minute training sessions for your operations and creative teams. Recorded and added to your private documentation portal for future reference.
- 05
Ongoing support
24/7 monitoring, 4-hour SLA on critical issues, quarterly business reviews, and firmware updates pushed automatically with rollback safety.
Build your quote.
Size
Finish
Mounting
Content package
Support tier
Your configuration
- Size
- 22" (standard)
- Finish
- Matte black
- Mounting
- Counter-top
- Content package
- Self-serve CMS
- Support tier
- Standard (business hours)
Pricing is provided on quote. Lead times and finance options confirmed at the same time.
Get my quoteSide by side.
vs. competitor approaches
Traditional 22" tablet kiosk
Flat 2D touch only, no depth, lower dwell time.
AR phone experience
Requires app install, single user, drains customer device.
Holographic pyramid (Pepper-style)
Single sightline, dim, fragile in transit.
Mid-range 3D display (lenticular)
Sweet-spot only, limited content support.
In the wild.
Counter installation at premium watch boutique
Streetwear pop-up activation, Tokyo
Pharma rep using Mini at oncology congress
Executive briefing centre, satellite operator
Field marketer setting up in under an hour
Cabin-luggage carry case in transit
Fleet of 84 units managed from a single dashboard
Detail of brushed silver finish option
Illustrative concepts — not actual client installations.
What customers say.
"We rolled out 84 units in eleven weeks. Field installation by retail staff, zero technician visits, zero failures."
Olivia Chen
Director of Retail Innovation · Premium Swiss Watchmaker
"I can fly to a city, set up the activation alone, and run it remotely from London the next day. Nothing else lets us do that."
Jamie Okafor
Head of Experiential · Global Streetwear Brand
"Our reps' conversations doubled in length. When you can show the molecule in 3D, the question stops being whether it works and starts being how to prescribe it."
Dr. Henrik Bauer
VP Medical Affairs · Global Pharmaceutical Company
Illustrative testimonials — not actual client statements.
See it deployed.
Product questions.
Can't find your answer? Our team replies to every inquiry within one business day.
HoloBox Mini
22" · A 22-inch portable holographic display that brings the same magic to retail counters, small venues, and on-the-go activations.
